Brandoni | Fig. L9.128 | DN150 PN10/16 Lugged & Tapped Butterfly Valve (EPDM Liner)

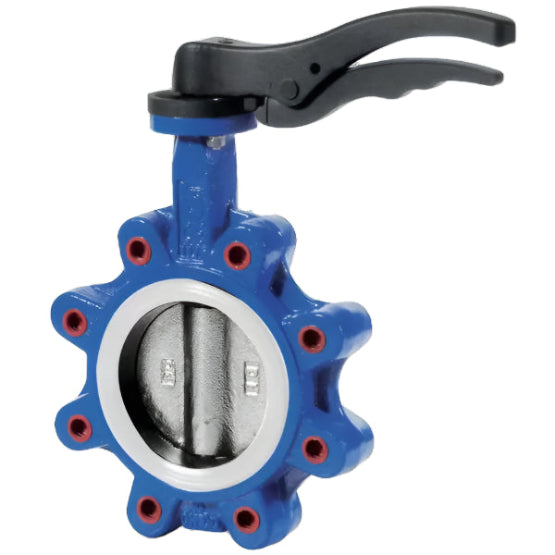

Brandoni Shut-off LUG Butterfly Valve with a Centred Disc, Lug Type Body and Lever Handle.

Epoxy Coated Ductile Iron Body, AISI 316 Stainless Steel Disc, EPDM Liner.

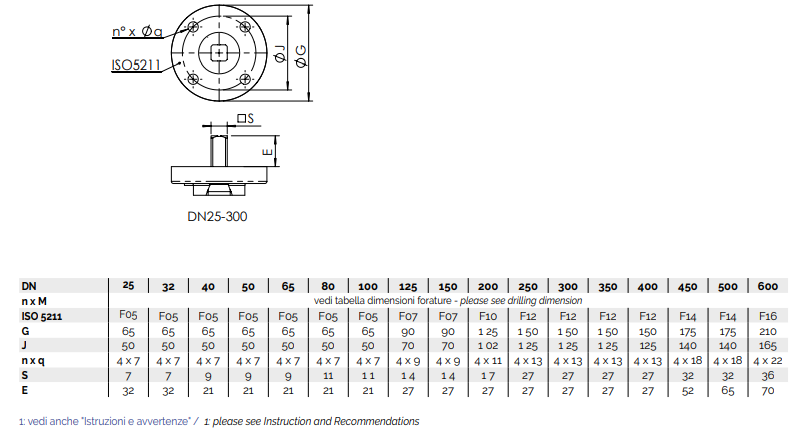

ISO 5211 for Direct Mount.

Rated Temperatures: -10°C to 120°C (WRAS Approved up to 80°C)

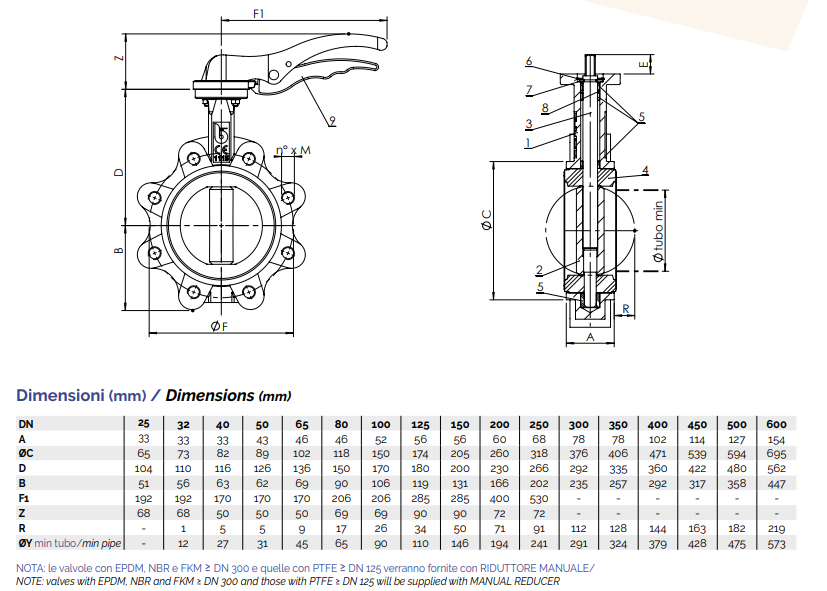

Face-To-Face Dimension: 56mm

Fig. L9.128 - Data Sheet
