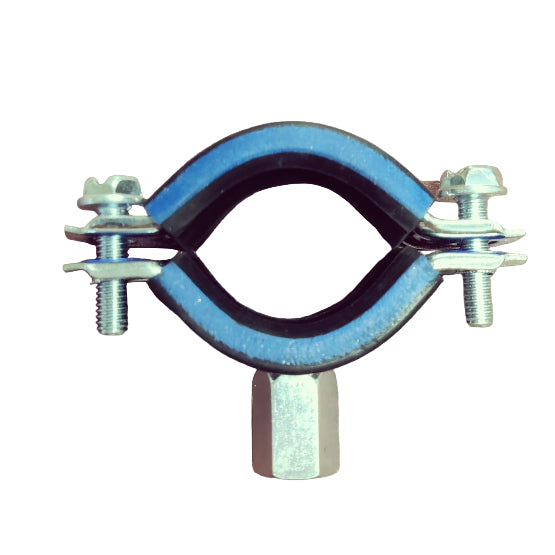

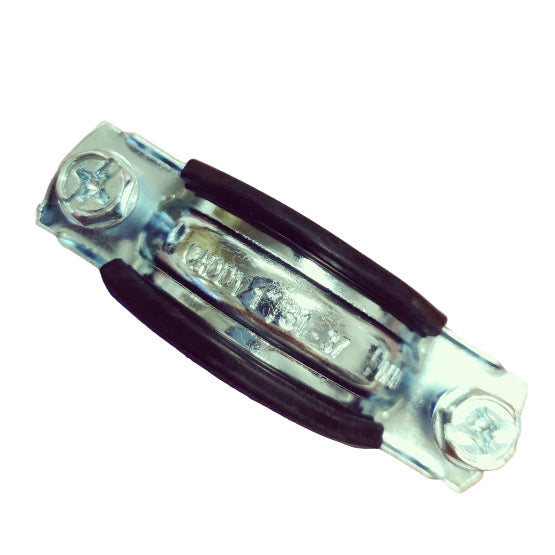

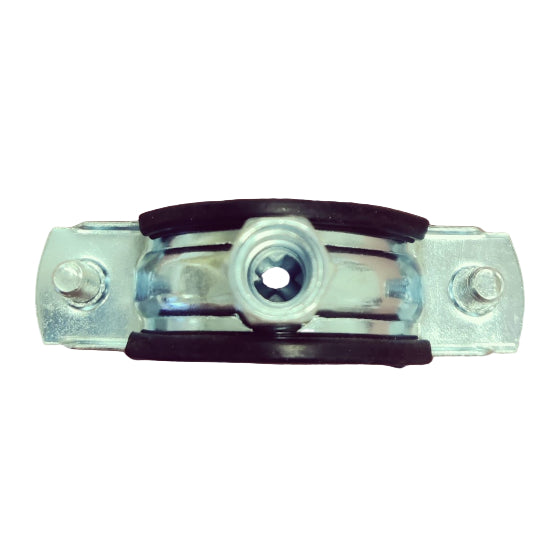

Caddy | 2" NB | 58-68MM Rubber Lined Steel Pipe Clip

Caddy Macrofix Insulated Pipe Clip, Outer Diameter: 58-68mm, Pipe Size: 2", NB/DN: 50, Rod Size: M8/M10, Width: 20mm, Thickness: 1.25mm, Screw Diameter: M6, Screw Length: 32mm, Static Load: 1,500N.

Specification

• Return-lip on the hanger prevents the rubber from detaching, eliminating rework during installation
• Plastic washer prevents screws from falling out during installation
• Combo head bolt works with slotted, hex, or Phillips drivers
• Longer ears position the screw farther from the hanger, improving tool clearance when the screw is driven down
• Combination nut can be attached to M8 or M10 threaded rod, simplifying material handling
• Screw length has been optimized to accommodate an increased pipe range, reducing inventory
• Category II noise reduction according to DIN EN ISO 3822-1
• Compliant for sound insulation design according to DIN 4109
• Reaction-to-fire classification is “E” in compliance with DIN EN13501-1:2010-01
