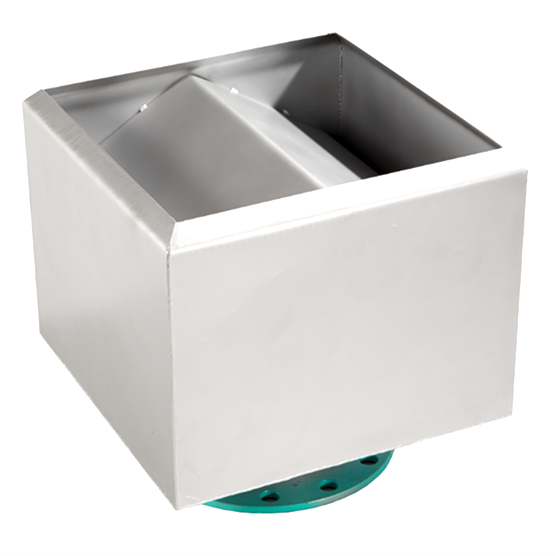

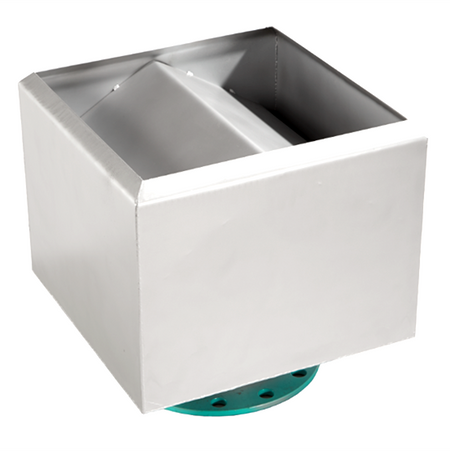

VH-F-2 | DN50 PN16 304L Stainless Steel Vent Head
Regular price
£323.00
inc. VAT
Couldn't load pickup availability
The HSB range of vent heads are used on vent pipes from blow down vessels, boiler feed-water tanks and condensate pump sets. They are designed to remove entrained water from discharged steam. An internal baffle plate separates water from the steam. The steam discharges safely to the atmosphere and the residual water drains back inside the vent pipe.
| Model Reference: | VH-F-2 |
| Size: | DN50 | 2" |
| Inlet Connection: | Flanged EN 1092 PN16 |
| Height: | 270mm |
| Width: | 160mm |
| Weight: | 4kg |
