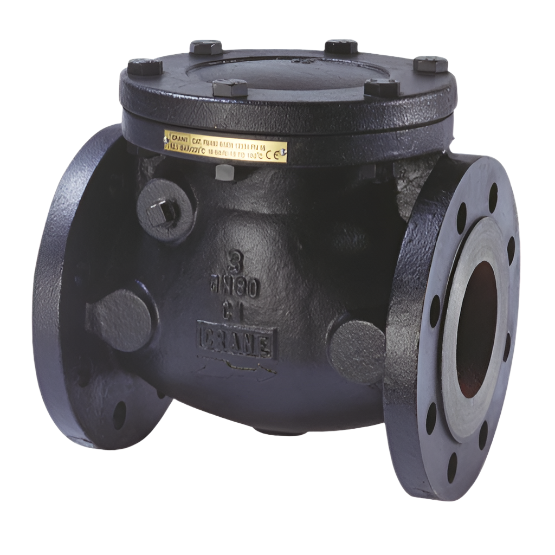

CRANE | Fig. FM492 | DN80 PN16 Cast Iron Swing Check Valve
Couldn't load pickup availability
**CLEARANCE ITEM - OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY**
SPECIFICATION: Swing check valve with cast Iron body and bonnet to BS EN 1561 GJL-250, cast iron disk to BS EN 1561 GJL-250 with bronze disk facing and bronze seat to BS EN 1982 CC491K. Valve is full bore and manufactured in accordance with BS EN 16767 and rated PN16 with -10 to 220°C temperature range. Gasket material shall be graphite-based. Valve is supplied with drilled flanges in accordance with BS EN 1092-2 PN16. Valve has C3 corrosion level epoxy coating and shall be categorized in accordance with the Pressure Equipment Directive 2014/68/EU and EU and the Pressure Equipment (Safety) Regulations 2016.
PRESSURE RATING: PN16
TEMPERATURE OPERATING RANGE: -10 to 220°C
UK END CONNECTION: Flanged BS EN 1092-2
OPERATOR: Swing Type Check Valve
Features & Benefits
• Check valves permit flow in one direction only and close automatically
if flow reverses
• Entirely automatic in action, depending upon pressure and velocity
of flow within the line to perform their functions of opening and closing
• Swing Type Check Valve with Bronze seat
• Manufactured to BS EN16767
• Fusion Bonded Epoxy coating suitable for C3 environment
The original manufacturer's warranty does not apply to old surplus warehouse stock being sold by HSB Technical Services Ltd in our clearance section. Therefore, in the event of a request for return we cannot offer a replacement item(s), please bear this in mind before purchase. All items (unless otherwise stated) are brand new, unused, surplus stock.
