DKL | NP-D-30 | 30 kW Gasketed Plate Heat Exchanger [LTHW/DHW]
Couldn't load pickup availability

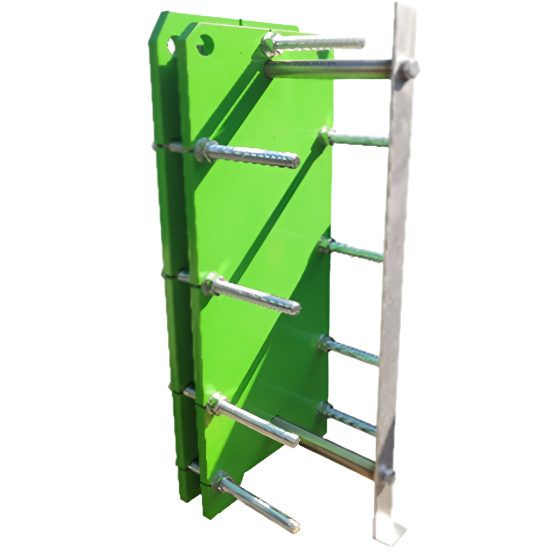

Gasketed Plate Heat Exchangers offer a highly effective method of transferring heat from one fluid to another. They are made by compressing a number of gasketed, corrugated plates together in a frame, so that the gaskets give a good seal. The corrugations touch where they cross, support the plates, resisting high working pressures and enhancing heat transfer.
| Part | Material Description |
| End Plates | BS EN 10025 S275 & S275JR (Carbon Steel) |
| Internal Plates | 1.4401 316 Stainless Steel |
| Internal Gaskets | NBR / EPDM |
| Connections | ASTM A312 TP 316/316 Stainless Steel |
| Carrier Bar | 1.4301 304 Stainless Steel |
| Stand | BS EN 10025 S275 & S275JR (Carbon Steel) |
| Nuts, Bolts & Washers | Carbon Steel, BZP (Grade 8.8) |
STANDARD RANGE
Our standard range of stock PHEs are designed for use with LTHW/DHW, however they are suitable for a wide variety of applications. If you have a specific requirement, or require any additional technical information for any of our models (i.e. flowrates, pressure drops etc.) then please do not hesitate to contact us.
| Primary Medium | Water |
| Primary Temperatures | 80 / 60 °C |
| Secondary Medium | Water |
| Secondary Temperatures | 10 / 60 °C |
| Design Pressure | 6.60 BarG |
| Test Pressure | 9.90 BarG |
| Design Code | PED Compliant |
UNIT DETAILS
| Model Ref. | Duty | Connection Size | Height | Width | Depth | Weight |
| NP-D-30 | 30 kW | 3/4" BSP | 775mm | 170mm | 320mm | 36kg |
LEAD-TIME
Please Note: Standard lead-times for any of our PHEs are 7-10 working days but this can often be improved upon. If you require delivery sooner, please do not hesitate to contact us.
