Genebre | 1/2" BSP Stainless Steel Trap Set Ancillary Kit

In stock
SKU: 1/2SSTAK
£59.00 inc. VAT

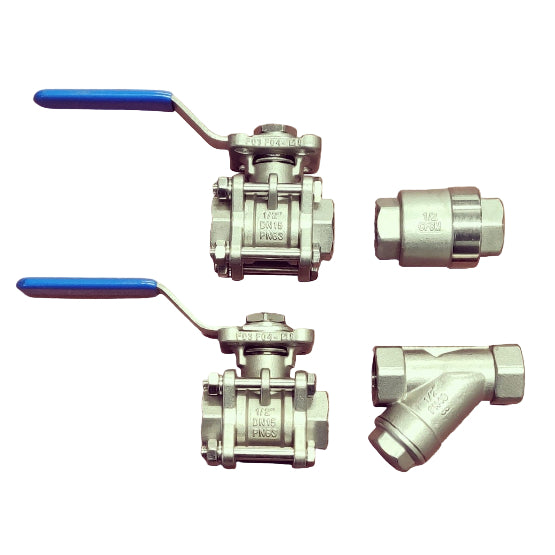

1/2" BSP Stainless Steel Trap Set Ancillary Kit Comprising;

    • 2x 1/2" BSP 3-Piece Full Bore Stainless Steel Lever Ball Valves
    • 1x 1/2" BSP Y-Type Stainless Steel Strainer
    • 1x 1/2" BSP Spring Stainless Steel Check Valve

    Specifications:

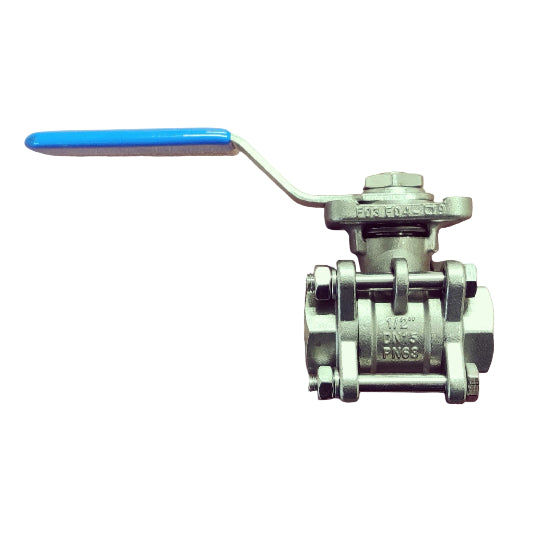

    • Ball Valve - 3-Piece Full Bore Ball Valve, Female BSPP Parallel Threads, Manual Lever Handle Operated, Stainless Steel 1.4408, PTFE + Graphite Body Gasket, PTFE +15% Graphite Ball Seat, Max. Operating Pressure 63 Bar (at 50°C), Max. Operating Temperature 180°C, Blow-Out Proof Stem.

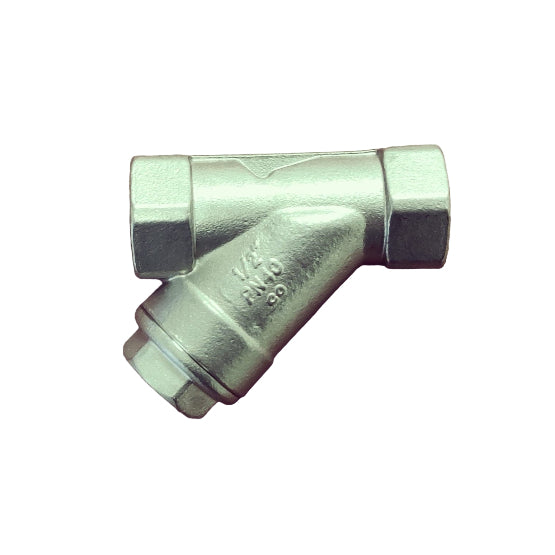

    • Strainer - Y-Type Strainer, Female BSPP Parallel Threads, Stainless Steel 1.4408, PTFE Body Gasket, Max. Operating Pressure 40 Bar (at 100°C), Max. Operating Temperature 240°C, 316 Stainless Steel Mesh Screen, 1mm OD Perforations.

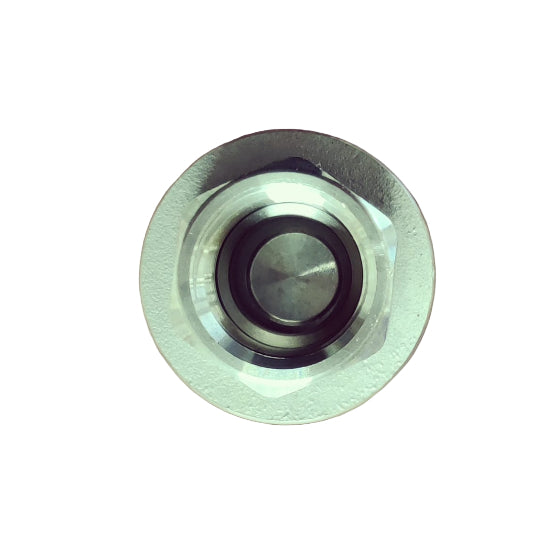

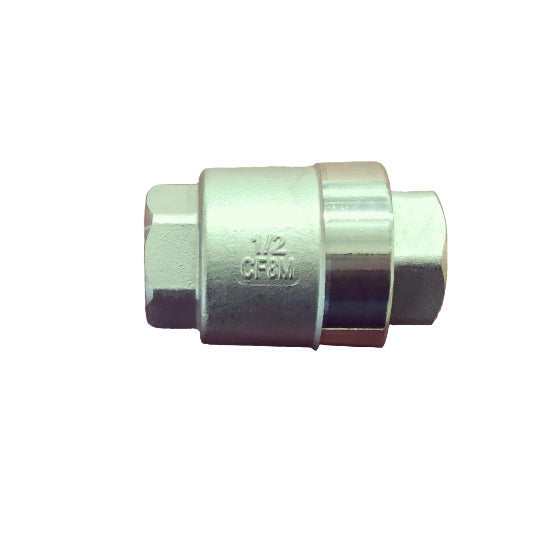

    • Check Valve - Spring Type Check Valve, Female BSPP Parallel Threads, Stainless Steel 1.4408, PTFE Body Gasket, Max. Operating Pressure 63 Bar (at 100°C), Max. Operating Temperature 240°C, Min. Opening Pressure: 65 mbar, Metal seating.
