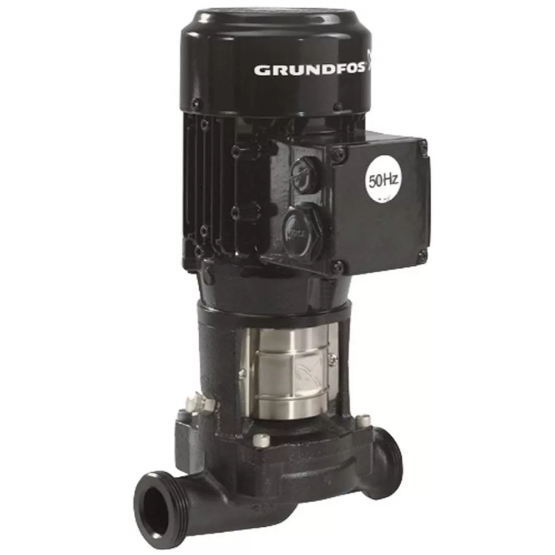

Grundfos | TP 25-90/2 A-O-Z-BUBE | Single Stage In-Line Pump
Couldn't load pickup availability
**CLEARANCE ITEM - OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY**
Please Note: This product has been discontinued and replaced with MAGNA 1 D 32-80 (99221240).
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 10 union connections (ISO 228-1). The pump is fitted with a fan-cooled asynchronous motor.
| Pump Housing: | Cast Iron |
| Rated Flow: | 6.2 m3/hr |
| Rated Head: | 6.2 m |
| Max. Operating Pressure: | 10 Bar |
| Pipe Connection: | 1.1/2" |
| Pressure Rating: | PN10 |
| Port-to-port Length: | 180 mm |
| Pumped Liquid: | Water |
| Liquid Temperature Range: | -10 ... 110 °C |
| Mains Frequency: | 50 Hz |
| Rated Voltage: | 3 x 220-240D/380-415Y V |
TP 25-90/2 A-O-Z-BUBE - No. 96408472
The original manufacturer's warranty does not apply to old surplus warehouse stock being sold by HSB Technical Services Ltd in our clearance section. Therefore, in the event of a request for return we cannot offer a replacement item(s), please bear this in mind before purchase. All items (unless otherwise stated) are brand new, unused, surplus stock.
