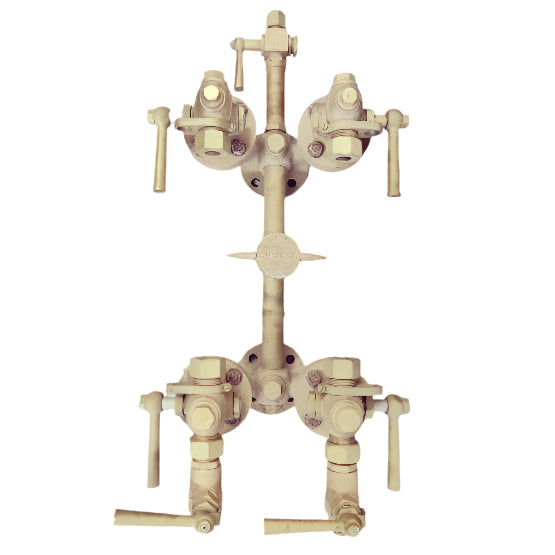

HOPKINSON | Refurbished - Bronze Water Gauge Pillar Assembly

**CLEARANCE ITEM - OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY**

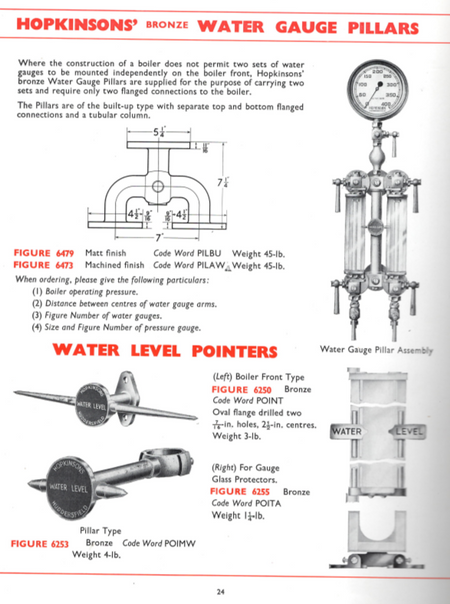

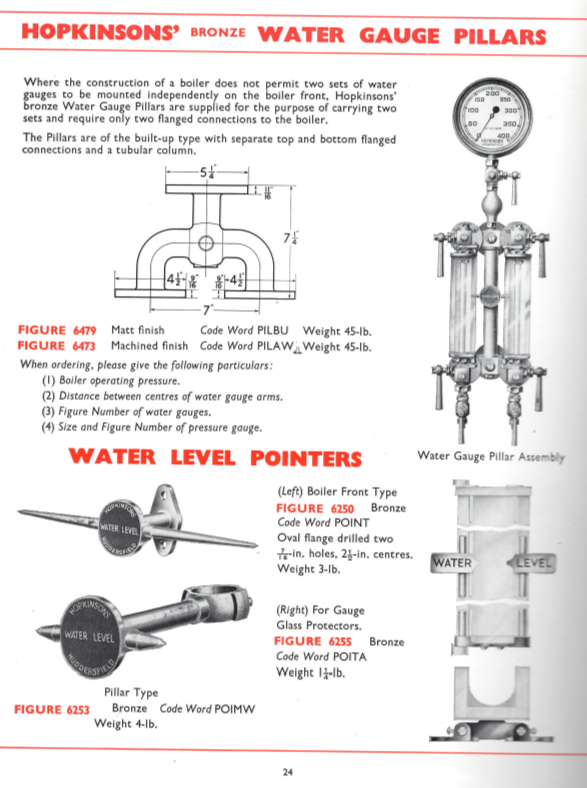

Where the construction of a boiler does not permit two sets of water gauges to be mounted independently on the boiler front, Hopkinsons' bronze Water Gauge Pillars are supplied for the purpose of carrying two sets and require only two flanged connections to the boiler.

The Pillars are of the built-up type with separate top and bottom flanged connections and a tubular column.

The Assembly Consists of;

• Figure 6479 - Water Gauge Pillar Assembly

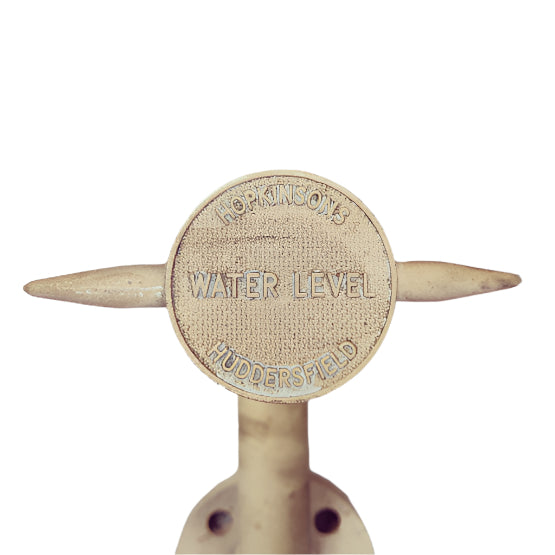

• Figure 6253 - Bronze Pillar Type Water Level Pointer

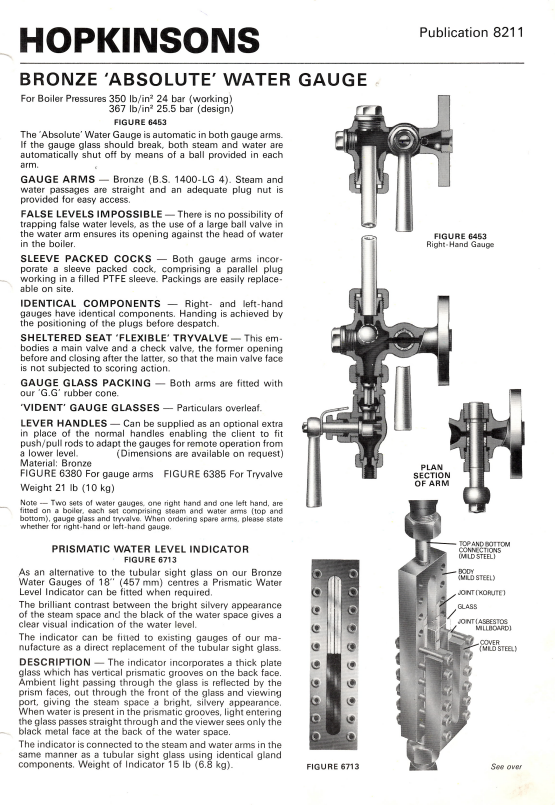

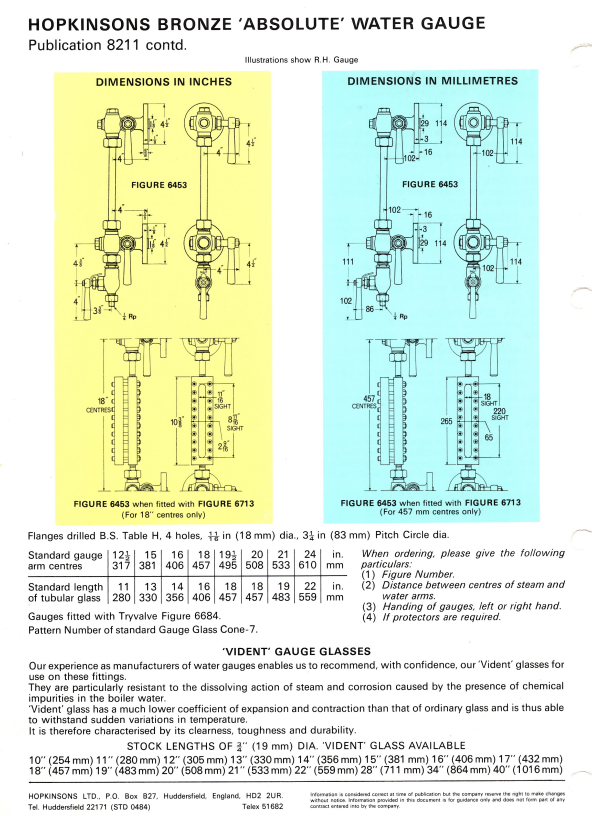

• Figure 6453 - Pair of Bronze 'Absolute' Water Gauge, Bronze Gauge Steam and Water Arms (Top and Bottom, Left and Right)
• Bronze Tryvalves (Left and Right)
• Figure 534 - Taylor

The distance between the centres of the steam and water arms is 16".

This item has been removed from an existing boiler and will be fully overhauled including shot-blasting, replacement graphite sleeves/packing/gaskets, bolt-sets and pressure test. A test certificate will be provided. Suitable gauge glasses (not pictured) will be supplied but packaged separately for safe transit.

PLEASE NOTE: Despatch time from order placement is 7-10 Working Days to allow overhaul and test.

The original manufacturer's warranty does not apply to old surplus warehouse stock being sold by HSB Technical Services Ltd in our clearance section. Therefore, in the event of a request for return we cannot offer a replacement item(s), please bear this in mind before purchase.
