M&M | 7201 | H Class Coil c/w A1B09-1-2A DIN Connector

In stock
SKU: 7201 A1B09-1-2A
£49.25 inc. VAT
Sale £61.55 £49.25 inc. VAT
 More payment options

**CLEARANCE ITEM - OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY**

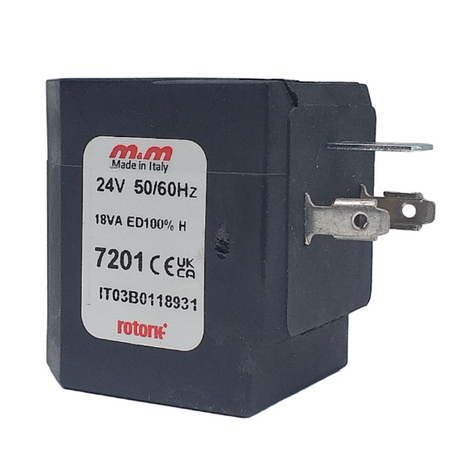

M&M International 7201 H Class Coil for solenoid valves with a 14.8mm armature tube. C/W A1B09-1-2A DIN Connector

Coil Specifications:

  • Voltage: 24v 50/60Hz
  • Holding: 18VA       Inrush: 36VA
  • Class ‘H’ – 180 Degrees °C
  • Ambient Temp. = -10°C to 70°C
  • ED = 100%

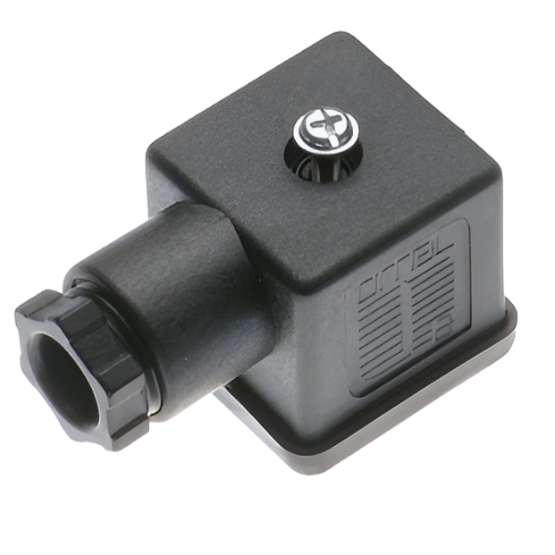

Connector Specifications:

  • Gland size: PG09
  • Cable diameter: 6-8mm
  • Type: 2 Pole + Earth
  • Body colour: Black
  • Version: A1
  • Depth of din: 26.8mm (From front to rear)
  • Spacing: 18mm
  • Max voltage: 250v AC / 300v DC
  • Max current: 16A
  • Operating current: 10A
  • Protection class: IP65
  • Insulation class: C-VDE 0110
  • Working temp.: -40° to 125°C

The original manufacturer's warranty does not apply to old surplus warehouse stock being sold by HSB Technical Services Ltd in our clearance section. Therefore, in the event of a request for return we cannot offer a replacement item(s), please bear this in mind before purchase. All items (unless otherwise stated) are brand new, unused, surplus stock.
