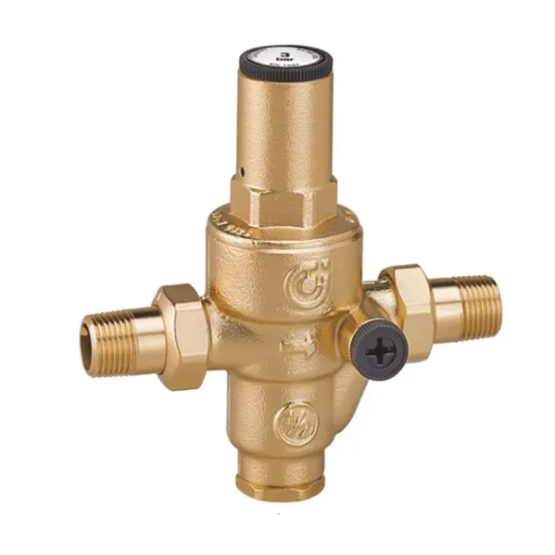

Altecnic | 536050 | 3/4" MBSP x MBSP Prescal 536 Pressure Reducing Valve
Couldn't load pickup availability
**CLEARANCE ITEM - OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY**
Description
The 536 series is specially designed for hot and cold services in semi-commercial or public buildings to equalise either the hot or cold supplies or both and prevent excessive pressure at water outlets such as taps, basins, toilets, dishwashers and other appliances. The pressure can be adjusted using a 10mm Allen key/screw driver, depending upon size. The internal cartridge assembly can be easily removed for inspection, cleaning and maintenance operations. The compensated seat design means that the set downstream pressure remains independent of upstream pressure variations. An integral filter prevents debris from entering the cartridge, which may affect its performance.
Features & Benefits
- Designed for applications in semi-commercial or public buildings
- Adjustable pressure range of 0.5 to 6 Bar
- Pressure adjusted using Allen key or screwdriver
- High maximum inlet pressure of 25 Bar
- Cartridge assembly can be easily removed for inspection, cleaning and maintenance
- Integral filter prevents debris entering the cartridge
- 3/4" male x male screwed iron connections
- Includes 1/4" gauge port
- WRAS Approved
Specification
- Max. inlet pressure: 25 Bar
- Outlet pressure setting range: 0.5 to 6 Bar
- Factory setting: 3 Bar
- Max. working pressure: 80°C
- Medium: portable water
- Complies with: BS EN 1567
- Acoustic group: I
The original manufacturer's warranty does not apply to old surplus warehouse stock being sold by HSB Technical Services Ltd in our clearance section. Therefore, in the event of a request for return we cannot offer a replacement item(s), please bear this in mind before purchase. All items (unless otherwise stated) are brand new, unused, surplus stock.
