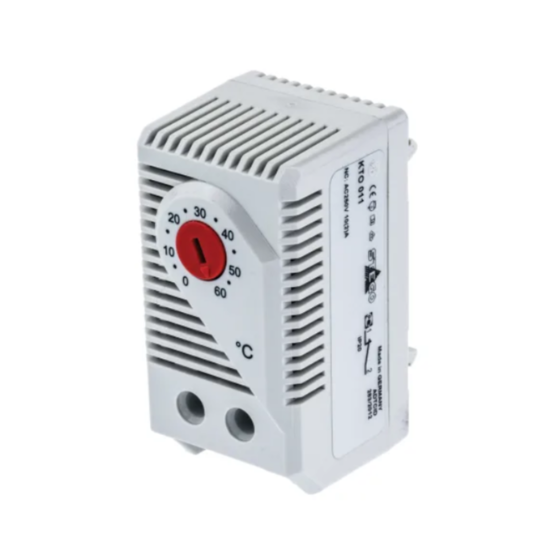

RS Pro | 697-4437 | STEGO NC Enclosure Thermostat, 120 → 250 V ac, 0 → +60 °C
Regular price
£12.05
inc. VAT
Regular price
Sale
£24.10
Sale price
£12.05
inc. VAT
Couldn't load pickup availability
**CLEARANCE ITEM - OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY**
KTO 011 (697-4437) thermostat normally closed, contact breaker for regulating heaters.,KTS 011 (697-4446) thermostat normally open, contact maker for regulating filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Large setting range
Small size 60 x 33 x 43 mm
Plastic casing according to UL94 V-0, light grey
Variable fitting position and simple to mount (clip for 35mm DIN rail)
Maximum switching capacity: 250Vac, 10(2)A; 120Vac 15(2)A; Vdc 30W
Switch temperature difference 7K (±4K)
Thermostatic bimetal sensor element
Contact resistance <10mΩ
Service life >100,000 cycles
EMC according to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection 2-pole terminal for 2.5mm2 clamping torque 0.8Nm
Operating/storage temperature -20 to +80°C/-45 to +80°C
IP20
Small size 60 x 33 x 43 mm
Plastic casing according to UL94 V-0, light grey
Variable fitting position and simple to mount (clip for 35mm DIN rail)
Maximum switching capacity: 250Vac, 10(2)A; 120Vac 15(2)A; Vdc 30W
Switch temperature difference 7K (±4K)
Thermostatic bimetal sensor element
Contact resistance <10mΩ
Service life >100,000 cycles
EMC according to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection 2-pole terminal for 2.5mm2 clamping torque 0.8Nm
Operating/storage temperature -20 to +80°C/-45 to +80°C
IP20
Standards
VDE (697-4437 & 697-4446)
UL, VDE, CSA (121-7322 & 121-7323)
UL, VDE, CSA (121-7322 & 121-7323)
Approvals
VDE
Approvals
VDE
