Sauter | ASM105SF132 | 5 Nm Damper Actuator with SAUTER Universal Technology
Regular price
£256.40
inc. VAT
Couldn't load pickup availability

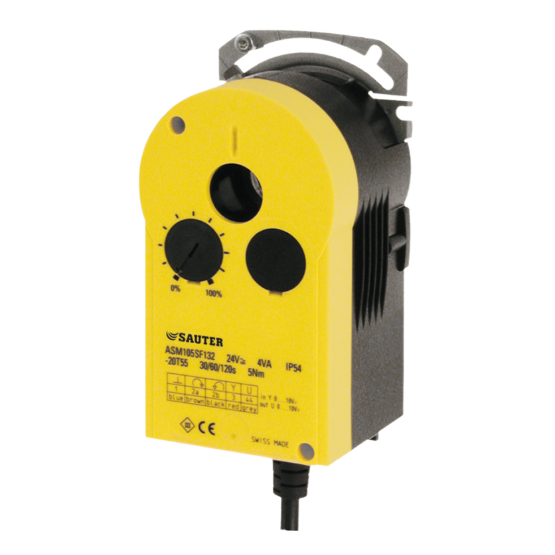

ASM 105S F132: Damper actuator with SAUTER Universal Technology (SUT)
Features
• For controllers with switching (2- and 3-point) or continuous output (0…10 V)
• Self-centring spindle adapter
• Gear unit can be disengaged to position the damper and for manual adjustment
• Stepping motor with electronic activation and cut-out
• Maintenance-free
• Intelligent adaptation of rotation angle, incl. feedback adjustment
• Free configuration using the CASE Drive PC tool
• Suitable for all fitting positions
| Rotational Torque & Holding Torque | 5 Nm |
| Power Supply | 24 V |
| Running Time for 90° |
35/60/120s |
| Power Consumption |
5.0 W, 9.0 VA |
