Sauter | AVM114SF901 | Valve Actuator with SAUTER Universal Technology

**DISCONTINUED ITEM - OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY**

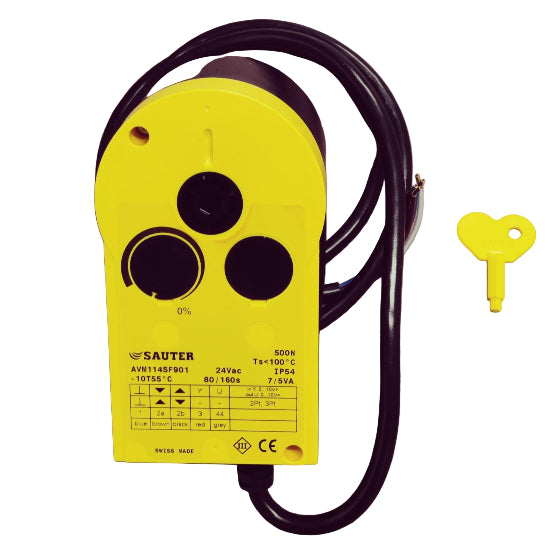

Depending on the type of connection (see connection diagram), the actuator can be used as a continuous 0...10 V, 2-point (OPEN/CLOSE) or 3-point actuator (OPEN/STOP/CLOSE) with an intermediate position.

Features
• Activation of 2-way and 3-way valves of the VUN/BUN, VUD/BUD and VUE/BUE series
• For controllers with a switching (2- and 3-point) or continuous (0...10 V) output
• Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic,
force-dependent cut-off
• Automatic recognition of applied control signal (continuous or switched)
• Coding switches for selecting characteristic and running time
• Type of characteristic (linear/equal-percentage) can be set on the actuator
• Automatic adaptation to valve stroke
• Maintenance-free gearbox

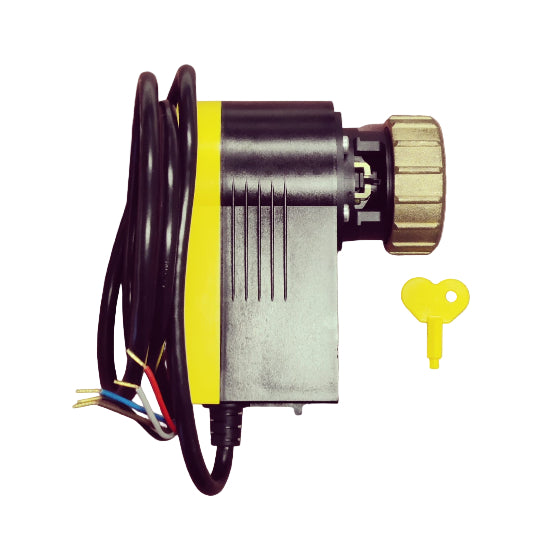

• Gear unit can be disengaged in order to position the valve by hand (hexagon key provided)
• Connection with valve spindle performed automatically after control voltage is applied
• Brass cap nut for fitting the valve
• Fitting vertically upright to horizontal, not suspended

The original manufacturer's warranty does not apply to old surplus warehouse stock being sold by HSB Technical Services Ltd in our clearance section. Therefore, in the event of a request for return we cannot offer a replacement item(s), please bear this in mind before purchase. All items (unless otherwise stated) are brand new, unused, surplus stock.
