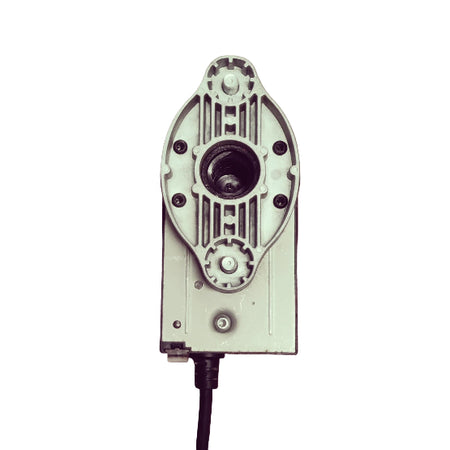

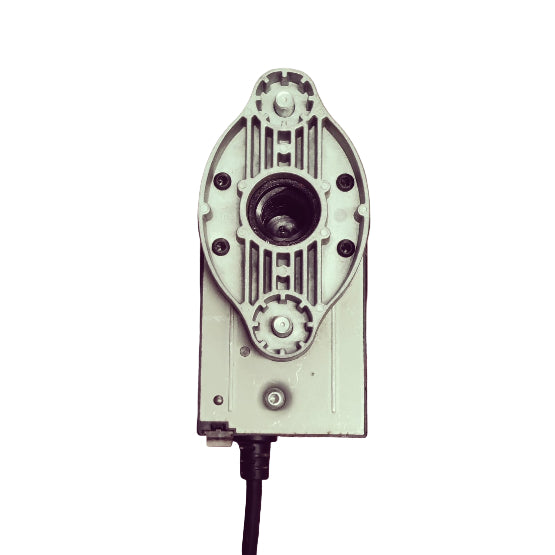

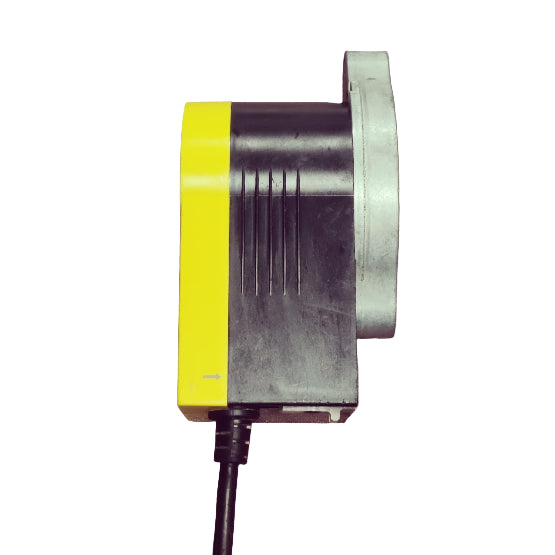

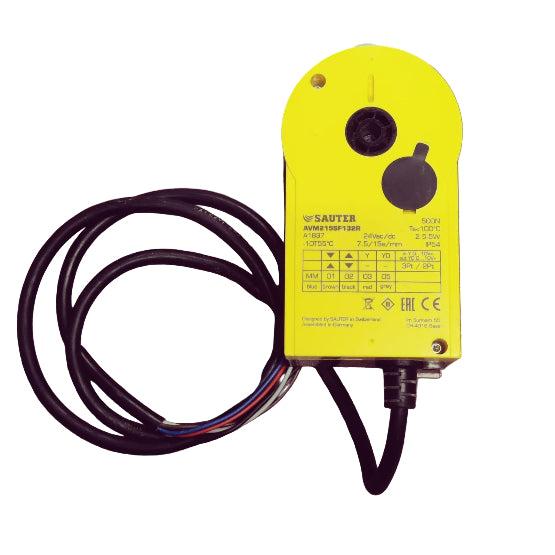

Sauter | AVM215SF132R | Valve Actuator with SAUTER Universal Technology
Couldn't load pickup availability
**OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY - NOTE CABLE LENGTHS MAY VARY**
Semi-automatic adaptation to valve, automatic stroke path detection, precision activation and high energy efficiency.
Features
• Activation of 2-way and 3-way valves of the VUG/BUG, VUS/BUS series up to DN 25
• For controllers with a switching (2- and 3-point) or continuous (0...10 V) output
• Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic, force-dependent cut-off
• Automatic recognition of applied control signal (continuous or switched)
• Coding switches for selecting characteristic and running time
• Type of characteristic (linear/equal-percentage) can be set on the actuator
• Automatic adaptation to valve stroke
• Direction of operation can be selected directly on the cable
• Maintenance-free gear unit
• Gear unit can be disengaged in order to position the valve by hand
• Connection with valve spindle performed semi-automatically after control voltage is applied
• Fitting vertically upright to horizontal, not suspended
| Actuating Power | 500N |
| Voltage | 24 V~/= |
| Running Time |
7.5 sec/mm 15 s/mm |
| Power Consumption |
3.5 W, 6.6 VA 2.7 W, 5.3 VA |
The original manufacturer's warranty does not apply to old surplus warehouse stock being sold by HSB Technical Services Ltd in our clearance section. Therefore, in the event of a request for return we cannot offer a replacement item(s), please bear this in mind before purchase. All items (unless otherwise stated) are brand new, unused, surplus stock.
