TECDrive | TEC-3-140022-3F1B | 0.75 kW 400V 3ph Variable Frequency Inverter Drive

In stock
SKU: TEC-3-140022-3F1B
Regular price £208.00 inc. VAT
Regular price Sale £427.20 Sale price £208.00 inc. VAT

**CLEARANCE ITEM - OLD SURPLUS WAREHOUSE STOCK - LIMITED AVAILABILITY**

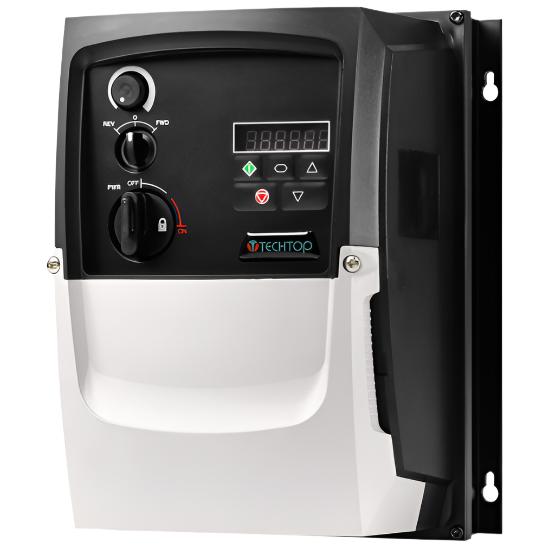

TEC TecDrive IP66 Outdoor series AC Inverter for 0.75kW (1HP) 400V three phase motor in VxF or sensorless vector control to 2.2A. Converts fixed frequency Three Phase 400V input to variable frequency 400V to control the speed of a standard AC Induction Motor, Permanent Magnet motor, Brushless DC Motor or Synchronous Reluctance Motor.

Output Current: 2.2A (continuous)
Overload: 150% x 60 seconds, 175% x 2.5 seconds

Size 1:  161mm Wide x 179mm Deep x 232mm High.
IP Rating: IP66 with UV protection for Outdoor use. (Outdoor) Suitable for indoor and outdoor use
Weight: 3.1kg.

Speed Control Range: 0-500Hz.
Dynamic Braking (DBr): Not Fitted.
Recommended Braking Resistance: N/A

Fixed Keypad with LED display
2 x Digital Inputs, 2 x Analogue/Digital Inputs, 1 x Analogue/Digital Output, 1 x Relay Contact set.
2 x RJ45 sockets for Modbus RTU or CANopen communications over RS485. (Parallel Ports).

Additional Options: Switched (SW): Fitted with Mains Isolator, Speed Potentiometer and Run Forward / Stop / Run Reverse selector switch

Input Current: 3.5A
Input protection required: 6A Fuse or MCB (Non-UL rating see Installation guide for full details)
Input Voltage: 380-480 Three Phase ±10% (max 500V) at 50-60Hz ±5%
EMC Compliance (Conducted Emissions - C1 EMC): IEC EN61800-3:2004 Category C1 (Industrial and Domestic). Filter can be disconnected if required.

Wall mount.
Rated Ambient: 40°C; Operating Ambient: -20°C to 40°C. Must be frost and condensation free.
Ventilation space in front: [Not Specified]
Ventilation space above and below: 200mm
Ventilation space at sides: 10mm
Mounting via 4 x M4 bolts at rear on 148 x 189 mm centres.

Manufacturer part number is TEC-3-140022-3F1B, replaces TEC-3-140022-3F1Y
Made in the UK.

The original manufacturer's warranty does not apply to old surplus warehouse stock being sold by HSB Technical Services Ltd in our clearance section. Therefore, in the event of a request for return we cannot offer a replacement item(s), please bear this in mind before purchase. All items (unless otherwise stated) are brand new, unused, surplus stock.
