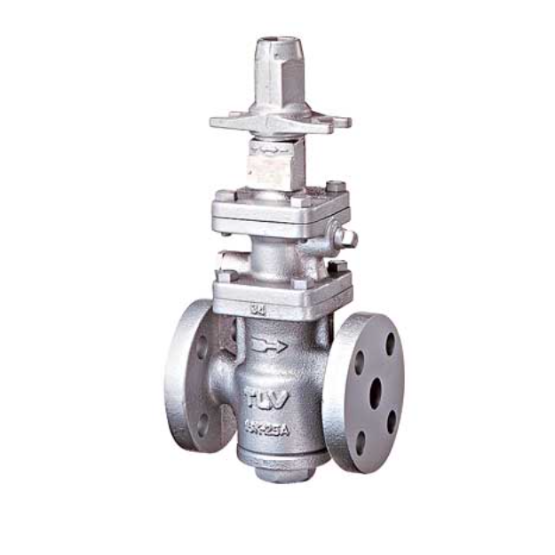

TLV | Fig. COSR-16 | DN50 PN25/40 Ductile Cast Iron Steam Pressure Reducing Valve

Self-actuated Pressure Reducing Valve with shock-absorbing piston. Technologically advance, pilot operated valve for accurate control in process steam systems.

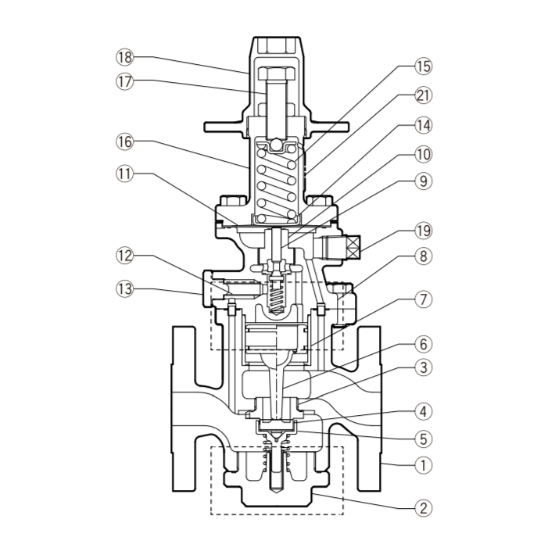

1. Self-aligning shock-absorbing spherical piston and advanced pilot regulator designs maintain secondary steam pressure accuracy, even during adverse process conditions.
2. Major internal components made of stainless steel for long service life.
3. Large surface area integral screen for pilot valve extends trouble-free service.
4. Internal secondary pressure-sensing channel makes external sensing line unnecessary.
5. Sized DN65 and larger have a silencer for noise reduction.

Specification

• Ductile Cast Iron GGG40.3

• Connection: Flanged PN25/40 DIN Standard
• Maximum Operating Pressure: 16 BarG
• Maximum Operating Temperature: 220 DegC
• Primary Pressure Range: 2 -16 BarG

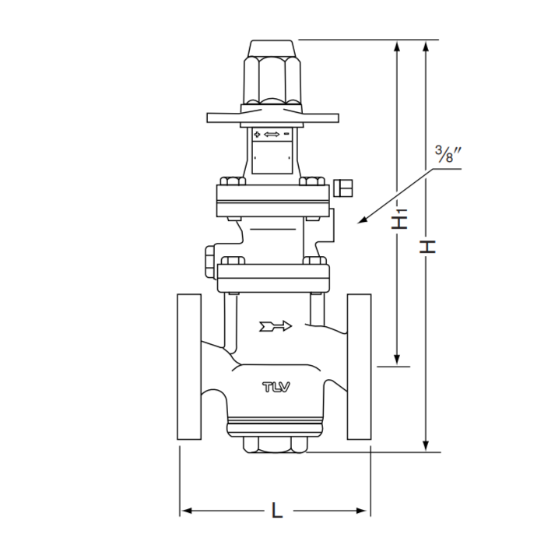

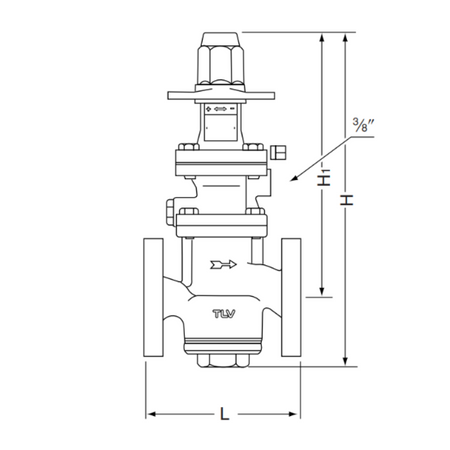

• Face-To-Face Dimension: 230mm

COSR-16 - Data Sheet
