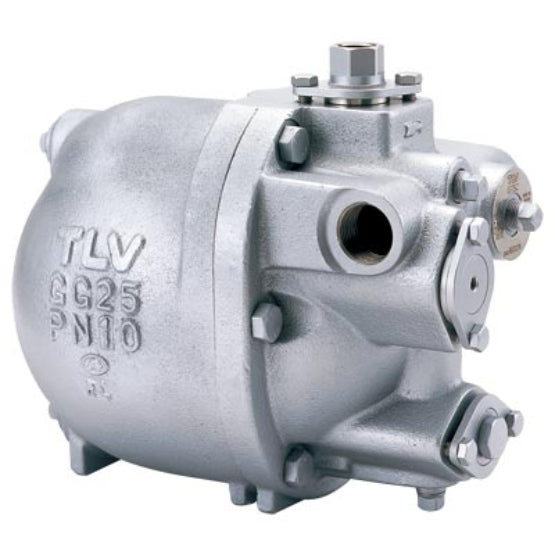

TLV | Fig. GP5C | 1" BSP X 1" BSP Cast Iron Compact Mechanical Condensate Pump

Compact Mechanical Pump for Condensate Removal and Recovery. Pump with linear inlet/outlet and low filling head. Ideal for low flow condensate removal from vented receivers situated at a low level in open systems.

1. Handles high-temperature condensate without caivtation.
2. No electric power or additional level controls required, hence INTRINSICALLY SAFE.
3. Pump will operate with an extremely low filling head (min. 155mm).
4. Linear inlet/outlet greatly reduces installation time.
5. Easy, inline access to internal parts simplifies cleaning and reduces maintenance costs.
6. High-quality stainless stell internals and hardened working surfaces ensure reliability.
7. Compact design permits installation in a limited space.

Specification

• Body Material: Cast Iron

• Connection: Screwed BSP DIN 2999

• Maximum Operating Pressure: 5 BarG

• Maximum Operating Temperature: 185 DegC

• Motive Medium Pressure Range: 0.3 - 5 BarG
• Maximum Allowable Back Pressure: 0.5 bar less than motive medium pressure used


GP5C - Data Sheet
