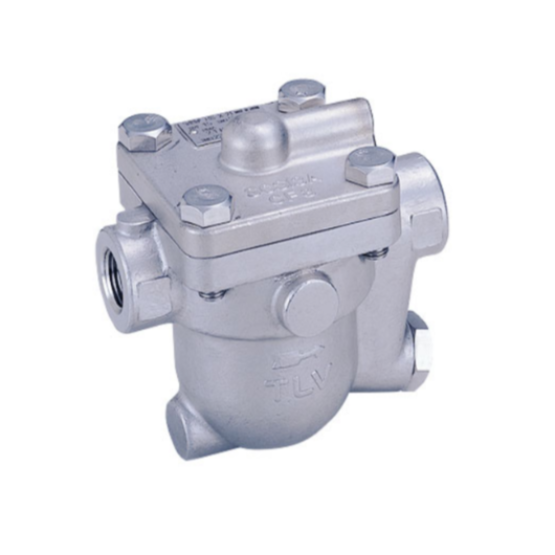

TLV | Fig. J3SX | DN15 PN25/40 Stainless Steel Free Float Steam Trap

Free float steam trap with three-point seating and thermostatic air venting. A reliable and durable stainless steel steam trap with tight shut-off for use on small-size process equipment.

1. Self-modulating free float provides continuous, smooth, low velocity condensate discharge as process loads vary.
2. Precision-ground float, constant water seal and three-point seating design ensure a steam tight seal, even under no-load conditions.
3. Only one moving part, the free float, prevents concentrated wear and provides long maintenance-free service life.
4. Thermostatic capsule (X-element) with "fail-open" feature vents air automatically until close-to-steam temperature.
5. Built-in screen with large surface area ensures extended trouble-free service.
6. Easy, inline access to internal parts simplifies cleaning and reduces maintenance costs.

Specification

• Cast Stainless Steel A351/A351M Gr. CF8 or CF8M

• Connection: Falnged PN25/40 DIN 2501

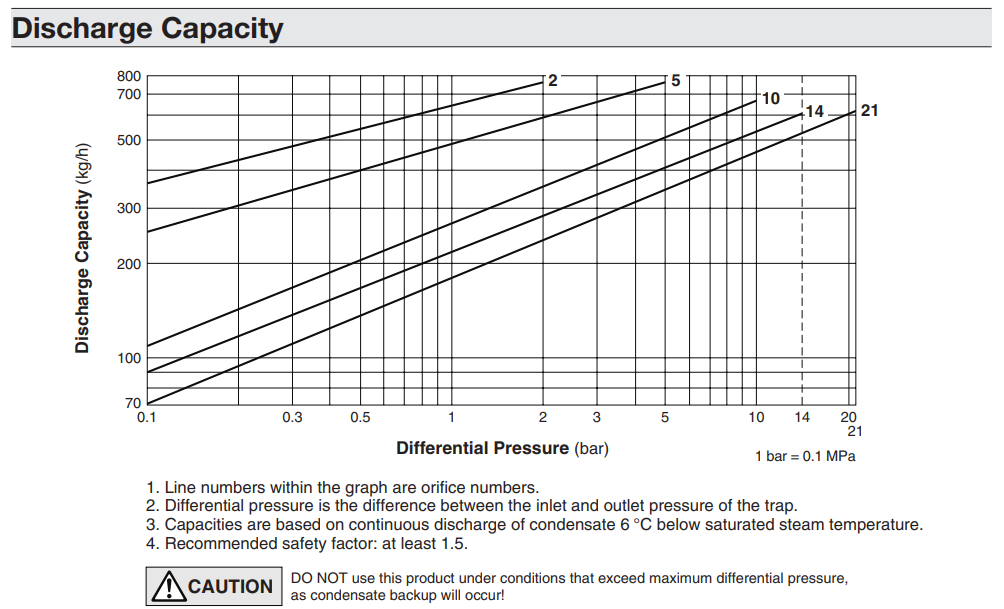

• Orifice No.: 2, 5, 10, 14, 21**
• Maximum Operating Pressure: 2, 5, 10, 14, 21 BarG
• Maximum Operating Temperature: 220 DegC

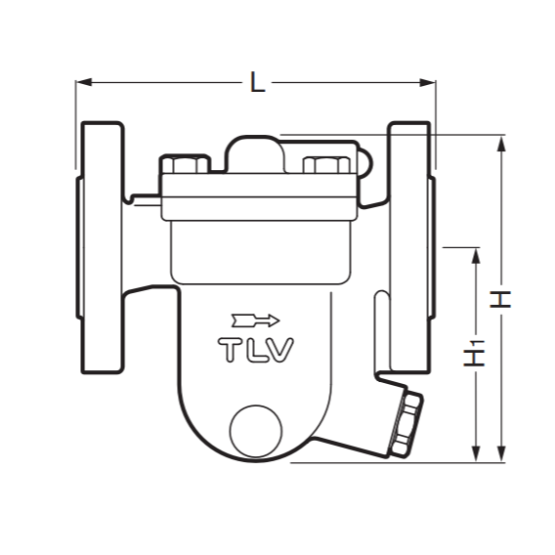

• Face-To-Face Dimension: 150mm

**Orifice No. must be advised at time of order. Orders will not be processed until the orifice no. has been confirmed in writing.

J3SX - Data Sheet
