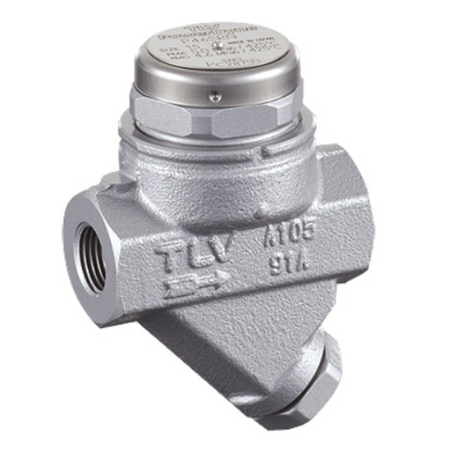

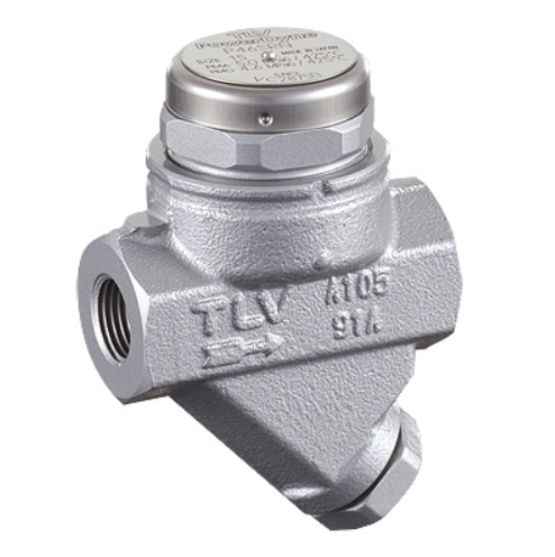

TLV | Fig. P46SRN | 3/4" BSP Carbon Steel Thermodynamic Steam Trap

Inline repairable thermodynamic disc trap (with thermostatic air venting) for steam mains, tracers and coils, with wide capacity range to match various conditions.

1. Inline replaceable module valve seat.
2. Air jacketing reduces no-load cycling.
3. Lapped disc provides steam-tight seal without air binding.
4. Built-in screen for trouble free service.
5. Bimetal ring provides quick thermostatic venting.
6. Hardened stainless steel working surfaces.

Specification

• Body: Carbon Steel A105

• Connection: Screwed BSP DIN 2999

• Maximum Operating Pressure: 46 BarG
• Minimum Operating Pressure: 0.3 BarG
• Maximum Operating Temperature: 425 DegC

• Maximum Back Pressure: 80% of inlet pressure

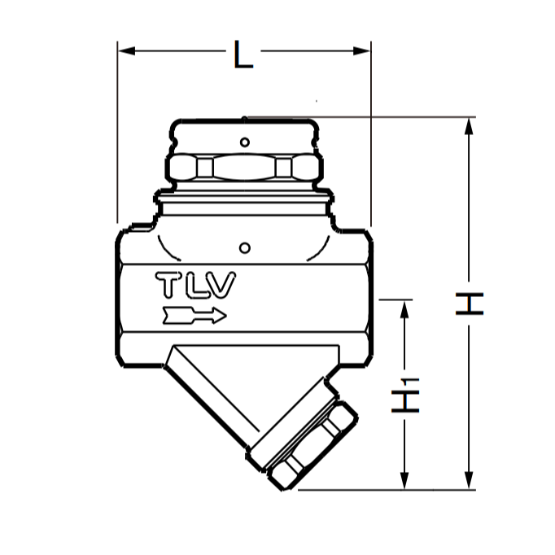

• Face-To-Face Dimension: 80mm

P46SRN - Data Sheet
