TLV | Fig. T8N | 1" BSP Cast Iron Compact Sight Glass

Lightweight sight glass for installation at the outlet side of steam traps to monitor trap performance and to check for steam leakage. Also recommended for checking the line flow of air and water. Suitable for small-to-large flow rates.

1. Clear sighting through self-polishing, heat-resistant glass.
2. Ball movement indicates the flow status.
3. Compact design saves space.
4. Inline repairable.

Specification

• Cast Iron FC250

• Connection: Screwed BSP DIN 2999
• Maximum Operating Pressure: 13 BarG
• Maximum Operating Temperature: 200 DegC

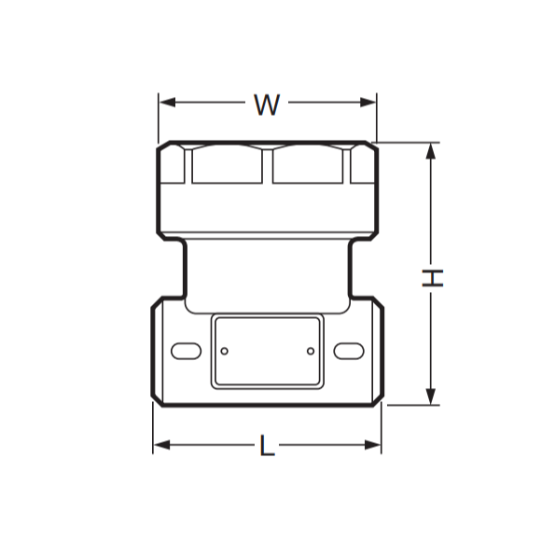

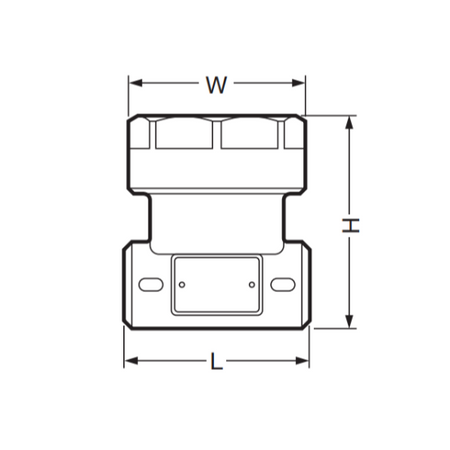

• Face-To-Face Dimension: 79mm

T8N - Data Sheet
